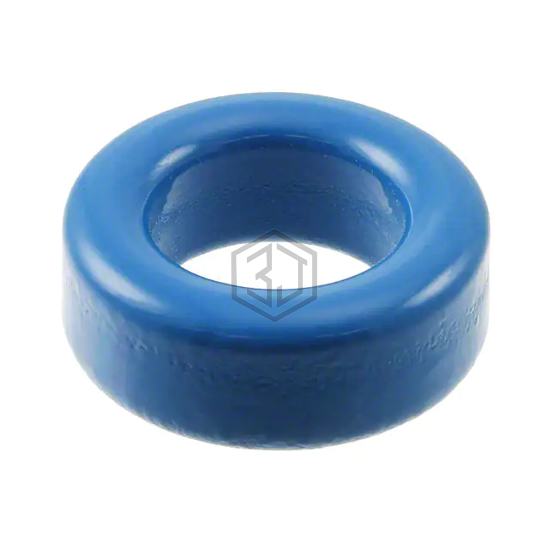

B64290L0719X038
FERRITE CORE TOROID 7.57UH T38
B64290L0719X038 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 7.57UH T38. Key specifications: material T38, tolerance ±30%.
In Stock: 6,930
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | T38 |
| Diameter | 0.917" (23.30mm) |
| Inductance Factor (Al) | 7.57 µH |
| Tolerance | ±30% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 10000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.66 |
| Effective Length (le) mm | 54.2 |
| Effective Area (Ae) mm² | 32.6 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 1763 |
| Finish | Epoxy |
| Height | 0.354" (9.00mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
B64290L0719X038 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 7.57UH T38
The material of B64290L0719X038 is T38.
The tolerance of B64290L0719X038 is ±30%.
