B64290L0699X065

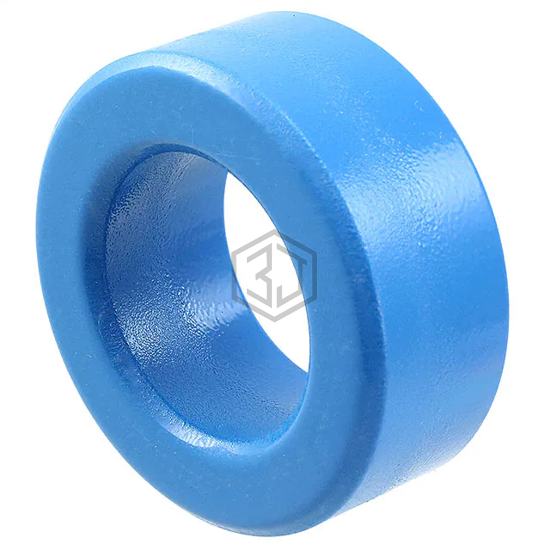

FERRITE CORE TOROID 12.6UH T65
B64290L0699X065 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 12.6UH T65. Key specifications: material T65, tolerance ±30%.
In Stock: 107
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | T65 |
| Diameter | 2.571" (65.30mm) |
| Inductance Factor (Al) | 12.6 µH |
| Tolerance | ±30% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 5000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.5 |
| Effective Length (le) mm | 152.1 |
| Effective Area (Ae) mm² | 305.9 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 46530 |
| Finish | Epoxy |
| Height | 1.047" (26.60mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
B64290L0699X065 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 12.6UH T65
The material of B64290L0699X065 is T65.
The tolerance of B64290L0699X065 is ±30%.
