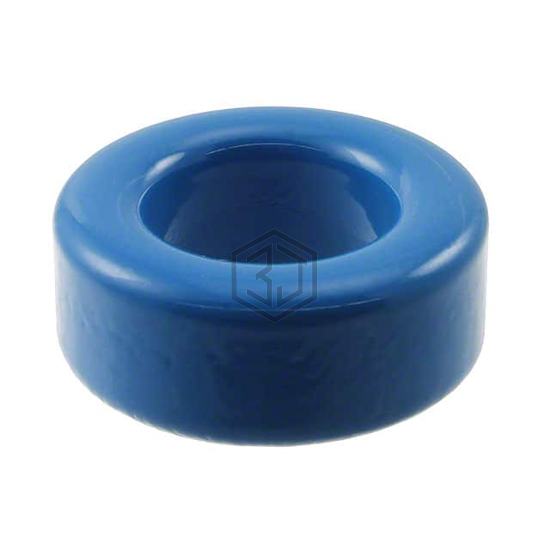

B64290L0615X087
FERRITE CORES
B64290L0615X087 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORES. Key specifications: supplier device package R 25.3 x 14.8 x 15, material N87, tolerance ±25%.
In Stock: 27
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | R 25.3 x 14.8 x 15 |
| Material | N87 |
| Diameter | - |
| Inductance Factor (Al) | - |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2200 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.78 |
| Effective Length (le) mm | 60.07 |
| Effective Area (Ae) mm² | 76.89 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 4619 |
| Finish | Epoxy |
| Height | - |
| Length | - |
| Width | - |
Frequently Asked Questions
B64290L0615X087 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORES
The package type of B64290L0615X087 is R 25.3 x 14.8 x 15.
The material of B64290L0615X087 is N87.
The tolerance of B64290L0615X087 is ±25%.
