B64290L0082X087

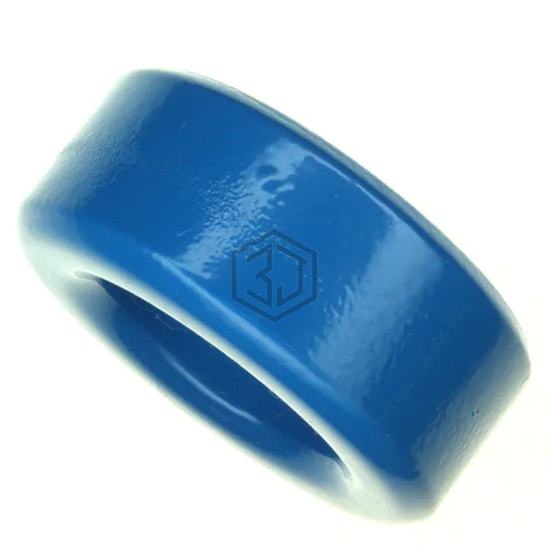

FERRITE CORE TOROID 4.46UH N87
B64290L0082X087 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 4.46UH N87. Key specifications: material N87, tolerance ±25%.
In Stock: 7,920
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | N87 |
| Diameter | 2.040" (51.80mm) |
| Inductance Factor (Al) | 4.46 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2200 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.62 |
| Effective Length (le) mm | 120.4 |
| Effective Area (Ae) mm² | 195.7 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 23560 |
| Finish | Epoxy |
| Height | 0.839" (21.30mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
B64290L0082X087 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 4.46UH N87
The material of B64290L0082X087 is N87.
The tolerance of B64290L0082X087 is ±25%.
