B64290L0044X027

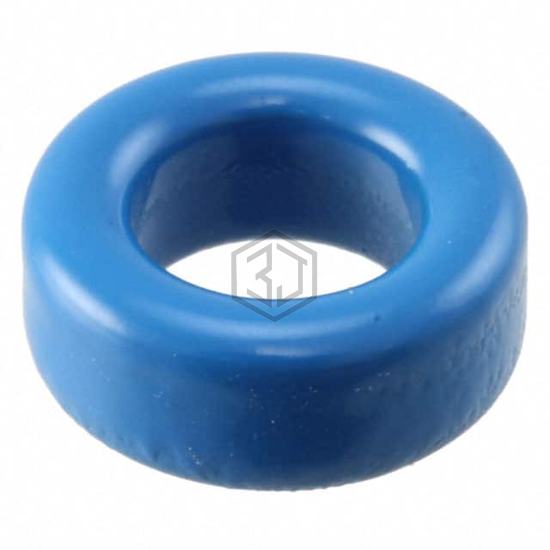

FERRITE CORE TOROID 1.02UH N27
B64290L0044X027 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 1.02UH N27. Key specifications: material N27, tolerance ±25%.
In Stock: 16,366
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | - |
| Material | N27 |
| Diameter | 0.535" (13.60mm) |
| Inductance Factor (Al) | 1.02 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 2000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 2.46 |
| Effective Length (le) mm | 30.09 |
| Effective Area (Ae) mm² | 12.23 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 368 |
| Finish | Epoxy |
| Height | 0.234" (5.95mm) |
| Length | - |
| Width | - |
Frequently Asked Questions
B64290L0044X027 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 1.02UH N27
The material of B64290L0044X027 is N27.
The tolerance of B64290L0044X027 is ±25%.
