FERRITE CORE TOROID 1.13UH N49

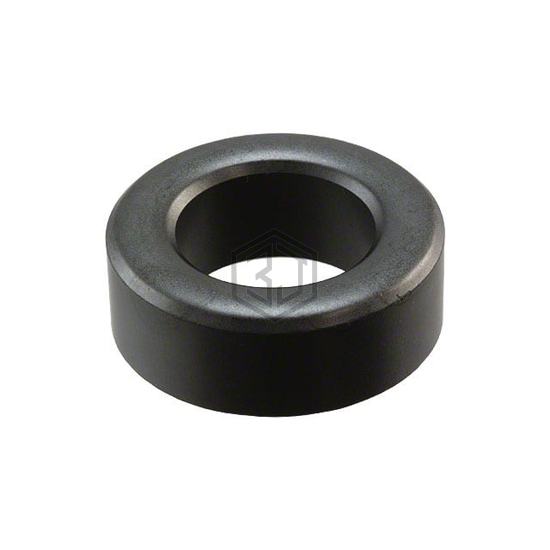

B64290A0719X049 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 1.13UH N49. Key specifications: supplier device package R 22.1 x 13.7 x 7.9, material N49, tolerance ±25%.
In Stock: 1,682
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | R 22.1 x 13.7 x 7.9 |
| Material | N49 |
| Diameter | 0.870" (22.10mm) |
| Inductance Factor (Al) | 1.13 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 1500 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.66 |
| Effective Length (le) mm | 54.2 |
| Effective Area (Ae) mm² | 32.6 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 1763 |
| Finish | Uncoated |
| Height | 0.311" (7.90mm) |
| Length | - |
| Width | - |
Submit your RFQ for B64290A0719X049 and get a quote within 24 hours.
