FERRITE CORE TOROID 5.46UH N30

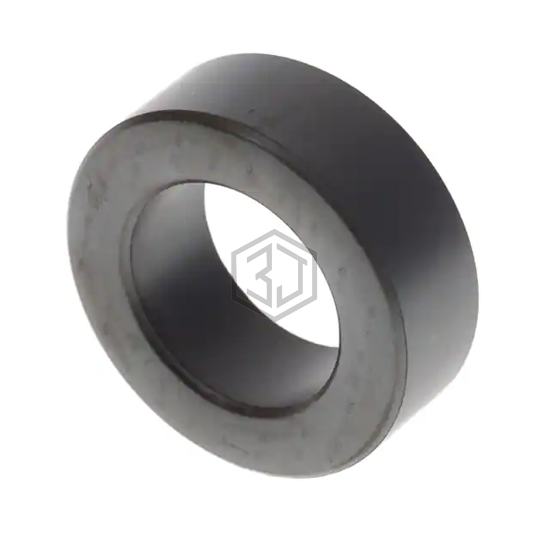

B64290A0048X830 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 5.46UH N30. Key specifications: supplier device package R 34 x 20.5 x 12.5, material N30, tolerance ±25%.
In Stock: 177
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | R 34 x 20.5 x 12.5 |
| Material | N30 |
| Diameter | 1.339" (34.00mm) |
| Inductance Factor (Al) | 5.46 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 4300 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.99 |
| Effective Length (le) mm | 82.06 |
| Effective Area (Ae) mm² | 82.6 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 6778 |
| Finish | Uncoated |
| Height | 0.492" (12.50mm) |
| Length | - |
| Width | - |
Submit your RFQ for B64290A0048X830 and get a quote within 24 hours.
