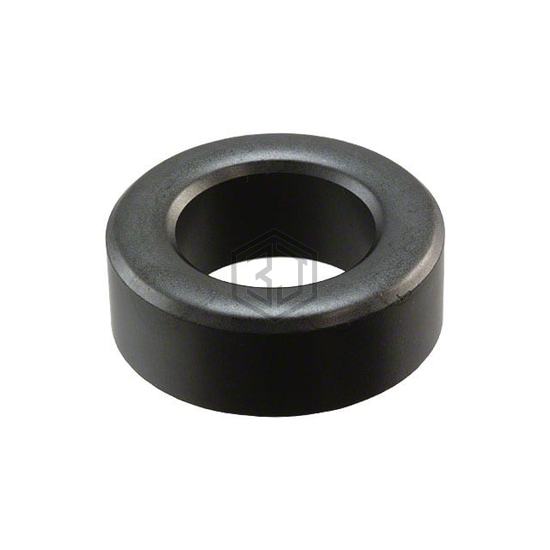

FERRITE CORE TOROID 3.06UH T35
B64290A0044X035 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE TOROID 3.06UH T35. Key specifications: supplier device package R 12.5 x 7.5 x 5, material T35, tolerance ±25%.
In Stock: 6,890
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Toroid |
| Supplier Device Package | R 12.5 x 7.5 x 5 |
| Material | T35 |
| Diameter | 0.492" (12.50mm) |
| Inductance Factor (Al) | 3.06 µH |
| Tolerance | ±25% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 6000 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 2.46 |
| Effective Length (le) mm | 30.09 |
| Effective Area (Ae) mm² | 12.23 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 368 |
| Finish | Uncoated |
| Height | 0.197" (5.00mm) |
| Length | - |
| Width | - |
Submit your RFQ for B64290A0044X035 and get a quote within 24 hours.
