B62152P0015X030

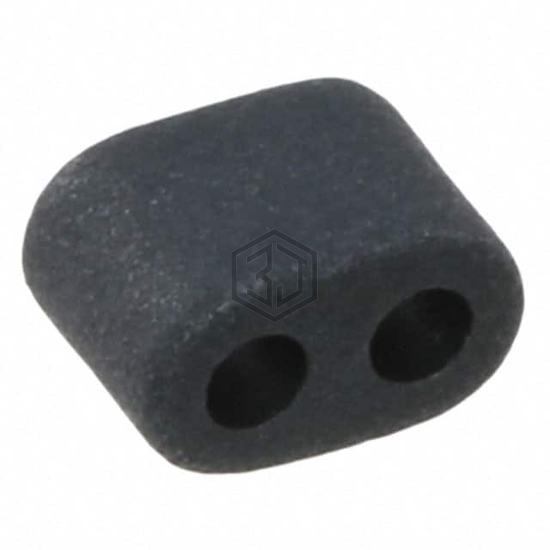

FERRITE CORE 2 HOLE 1.6UH N30
B62152P0015X030 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE 2 HOLE 1.6UH N30. Key specifications: material N30, tolerance ±30%.
In Stock: 1,107
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Multi-Hole (2) |
| Supplier Device Package | - |
| Material | N30 |
| Diameter | - |
| Inductance Factor (Al) | 1.6 µH |
| Tolerance | ±30% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 4300 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 3.22 |
| Effective Length (le) mm | 3.7 |
| Effective Area (Ae) mm² | 1.2 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 4.5 |
| Finish | Parylene |
| Height | 0.057" (1.45mm) |
| Length | 0.144" (3.65mm) |
| Width | 0.085" (2.15mm) |
Frequently Asked Questions
B62152P0015X030 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE 2 HOLE 1.6UH N30
The material of B62152P0015X030 is N30.
The tolerance of B62152P0015X030 is ±30%.
