B62152P0008X030

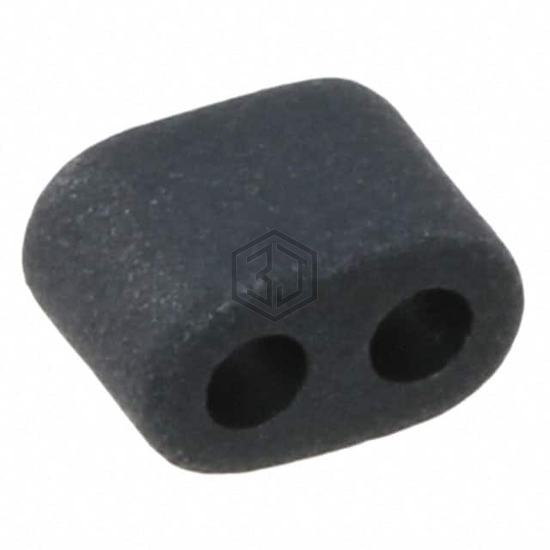

FERRITE CORE 2 HOLE 3.1UH N30
B62152P0008X030 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE 2 HOLE 3.1UH N30. Key specifications: material N30, tolerance ±30%.
In Stock: 53,087
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Multi-Hole (2) |
| Supplier Device Package | - |
| Material | N30 |
| Diameter | - |
| Inductance Factor (Al) | 3.1 µH |
| Tolerance | ±30% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 4300 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 1.78 |
| Effective Length (le) mm | 3.7 |
| Effective Area (Ae) mm² | 2.1 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 7.8 |
| Finish | Parylene |
| Height | 0.100" (2.54mm) |
| Length | 0.144" (3.65mm) |
| Width | 0.085" (2.15mm) |
Frequently Asked Questions
B62152P0008X030 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE 2 HOLE 3.1UH N30
The material of B62152P0008X030 is N30.
The tolerance of B62152P0008X030 is ±30%.
