B62152A0007X001

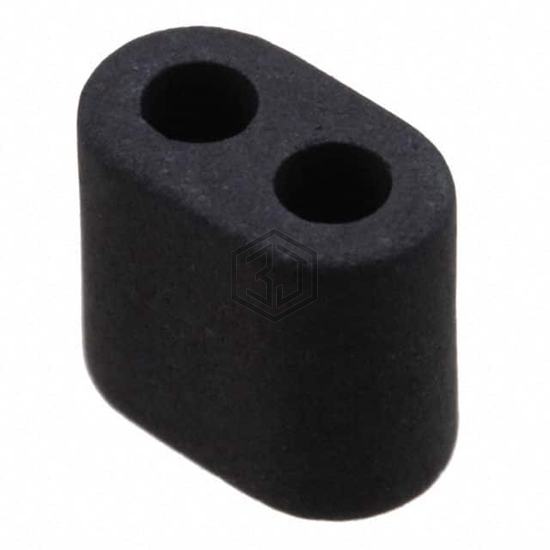

FERRITE CORE 2 HOLE 140NH K1
B62152A0007X001 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE 2 HOLE 140NH K1. Key specifications: material K1, tolerance ±30%.
In Stock: 16,288
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Multi-Hole (2) |
| Supplier Device Package | - |
| Material | K1 |
| Diameter | - |
| Inductance Factor (Al) | 140 nH |
| Tolerance | ±30% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 80 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.75 |
| Effective Length (le) mm | 7.6 |
| Effective Area (Ae) mm² | 10.2 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 78 |
| Finish | Uncoated |
| Height | 0.244" (6.20mm) |
| Length | 0.285" (7.25mm) |
| Width | 0.165" (4.20mm) |
Frequently Asked Questions
B62152A0007X001 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE 2 HOLE 140NH K1
The material of B62152A0007X001 is K1.
The tolerance of B62152A0007X001 is ±30%.
