B62152A0004X001

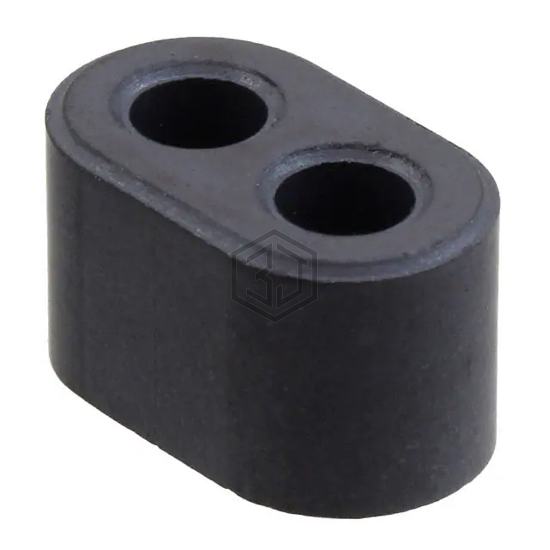

FERRITE CORE 2 HOLE 190NH K1
B62152A0004X001 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE 2 HOLE 190NH K1. Key specifications: material K1, tolerance ±30%.
In Stock: 2,470
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Type | Multi-Hole (2) |
| Supplier Device Package | - |
| Material | K1 |
| Diameter | - |
| Inductance Factor (Al) | 190 nH |
| Tolerance | ±30% |
| Gap | Ungapped |
| Effective Permeability (µe) | - |
| Initial Permeability (µi) | 80 |
| Core Factor (ΣI/A) mm<sup>-1</sup> | 0.54 |
| Effective Length (le) mm | 15.3 |
| Effective Area (Ae) mm² | 28.4 |
| Minimum Core Cross Section (Amin) mm² | - |
| Effective Magnetic Volume (Ve) mm³ | 435 |
| Finish | Uncoated |
| Height | 0.327" (8.30mm) |
| Length | 0.571" (14.50mm) |
| Width | 0.335" (8.50mm) |
Frequently Asked Questions
B62152A0004X001 is a Ferrite Cores manufactured by EPCOS - TDK Electronics. FERRITE CORE 2 HOLE 190NH K1
The material of B62152A0004X001 is K1.
The tolerance of B62152A0004X001 is ±30%.
