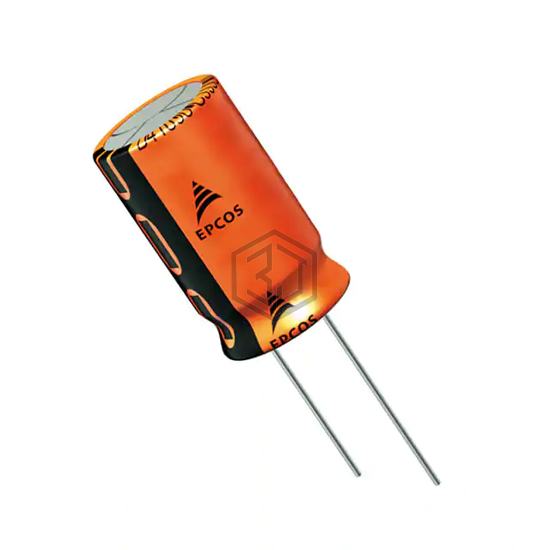

CAP ALUM 100UF 20% 250V RADIAL
B43888F2107M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 100UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, voltage - rated 250 V, package / case Radial, Can, size / dimension 0.630" Dia (16.00mm).
In Stock: 3,233
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 3.3Ohm @ 120Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.18 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for B43888F2107M000 and get a quote within 24 hours.
