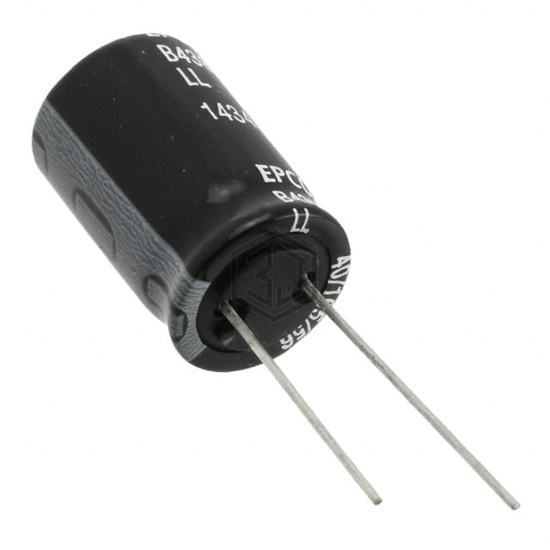

CAP ALUM 22UF 20% 350V RADIAL
B43858A4226M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 22UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 4,725
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 560 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
B43858A4226M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43890C5226M004 | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 450V RADIAL | 88% | View |
| MAL204271229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 450V AXIAL | 84% | View |
| KJ2D220MP51020 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 75% | View |
| UPTW6220MHD | Nichicon | CAP ALUM 22UF 20% 420V RADIAL | 74% | View |
| 50RX3022M5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 56% | View |
| 16ZLG22MEFCT55X7 | Rubycon | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for B43858A4226M000 and get a quote within 24 hours.
