CAP ALUM 850UF 20% 400V SCREW

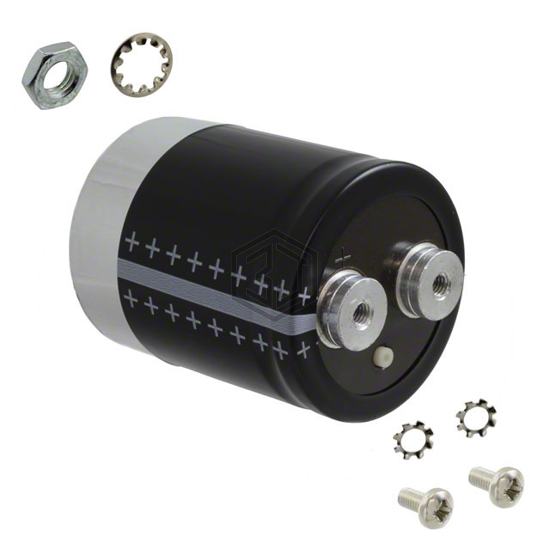

B43770A9857M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 850UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 400 V, package / case Radial, Can - Screw Terminals, size / dimension 2.532" Dia (64.30mm).
In Stock: 60
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 850 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 70mOhm @ 100Hz |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.5 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 110 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.532" Dia (64.30mm) |
| Height - Seated (Max) | 3.201" (81.30mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for B43770A9857M000 and get a quote within 24 hours.
