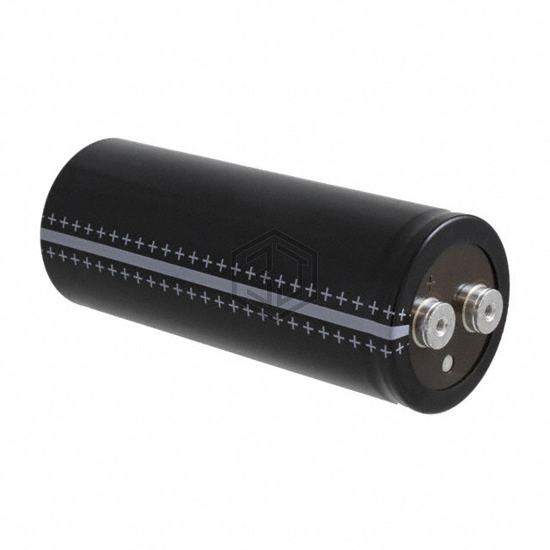

CAP ALUM 10000UF 20% 350V SCREW
B43740A4109M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 10000UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 350 V, package / case Radial, Can - Screw Terminals, size / dimension 3.028" Dia (76.90mm).
In Stock: 5,933
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 11mOhm @ 100Hz |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 21.2 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 13 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 7.547" (191.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS71H103NP350 | KEMET | CAP ALUM 10000UF 20% 350V SCREW | 94% | View |
| 400LSQ10000M90X151 | Rubycon | CAP ALUM 10000UF 20% 400V SCREW | 93% | View |
| ALS80C103QP400 | KEMET | CAP ALUM 10000UF 20% 400V SCREW | 92% | View |
| DCMC103M400FE5F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 400V SCREW | 91% | View |
| LQR2V103MSEHBB | Nichicon | CAP ALUM 10000UF 20% 350V SCREW | 88% | View |
| LNC2G103MSEHBN | Nichicon | CAP ALUM 10000UF 20% 400V SCREW | 84% | View |
Submit your RFQ for B43740A4109M000 and get a quote within 24 hours.
