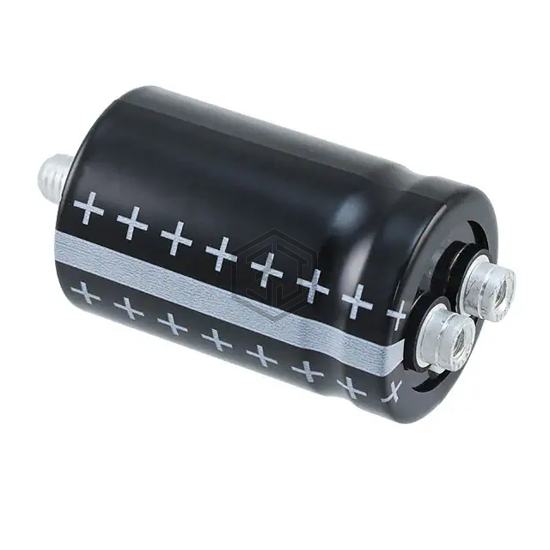

CAP ALUM 3300UF 20% 450V SCREW
B43721A5338M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 3300UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,737
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 38mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.37 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 65 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.531" Dia (64.30mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 36DY332F450DD2D | Vishay Sprague | CAP ALUM 3300UF 450V SCREW | 97% | View |
| LNU2W332MSEH | Nichicon | CAP ALUM 3300UF 20% 450V SCREW | 86% | View |
| LNU2W332MSEG | Nichicon | CAP ALUM 3300UF 20% 450V SCREW | 85% | View |
| LQR2G332MSEG | Nichicon | CAP ALUM 3300UF 20% 400V SCREW | 84% | View |
| ALS81A332LM450 | KEMET | CAP ALUM 3300UF 20% 450V SCREW | 83% | View |
| MAL210246332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 400V SCREW | 72% | View |
Submit your RFQ for B43721A5338M000 and get a quote within 24 hours.
