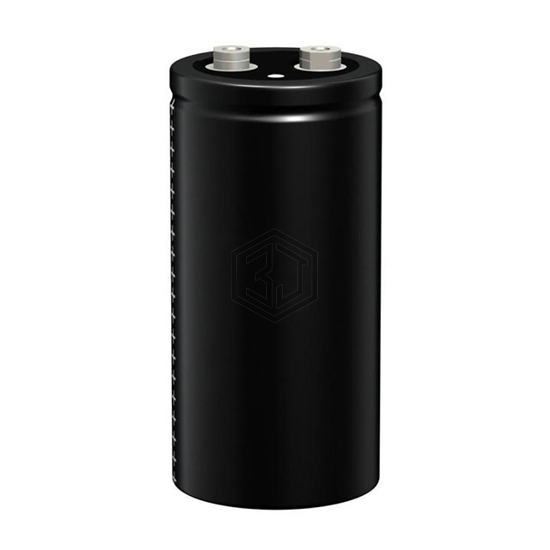

CAP ALUM 2700UF 20% 400V SCREW
B43705A9278M050 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 2700UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,419
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 26mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13.2 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 36 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.031" Dia (51.60mm) |
| Height - Seated (Max) | 4.693" (119.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNC2V272MSEGBN | Nichicon | CAP ALUM 2700UF 20% 350V SCREW | 93% | View |
| LNY2V272MSEFBB | Nichicon | CAP ALUM 2700UF 20% 350V SCREW | 92% | View |
| B43743A5278M000 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 450V SCREW | 90% | View |
| MAL250177272E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2700UF 20% 450V SCREW | 86% | View |
| LNU2H272MSEG | Nichicon | CAP ALUM 2700UF 20% 500V SCREW | 80% | View |
| ALS70H272QC500 | KEMET | CAP ALUM 2700UF 20% 500V SCREW | 76% | View |
