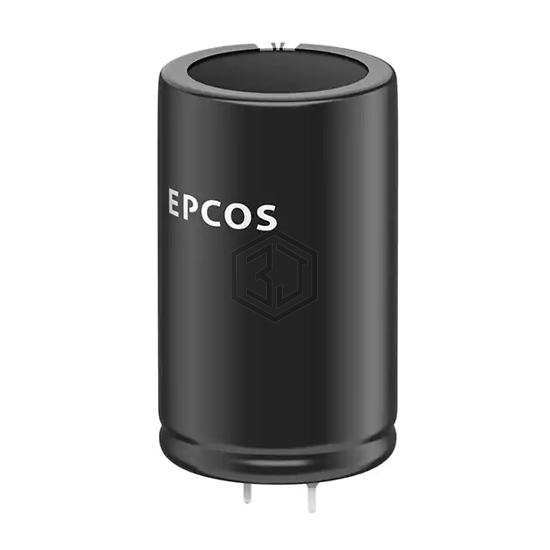

CAP ALUM 1000UF 20% 450V SNAP
B43647A5108M057 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1000UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 4,128
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.95 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 190 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 2.244" (57.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH301VNN102MA63W | United Chemi-Con | CAP ALUM 1000UF 20% 300V SNAP | 74% | View |
| EKMS251VSN102MR40S | United Chemi-Con | CAP ALUM 1000UF 20% 250V SNAP | 72% | View |
| LGX2E102MELB40 | Nichicon | CAP ALUM 1000UF 20% 250V SNAP | 68% | View |
| MAL215942102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 200V SNAP | 66% | View |
| ELXM221VSN102MR50S | United Chemi-Con | CAP ALUM 1000UF 20% 220V SNAP | 66% | View |
| B43508B2108M002 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 63% | View |
Submit your RFQ for B43647A5108M057 and get a quote within 24 hours.
