CAP ALUM 390UF 20% 200V SNAP

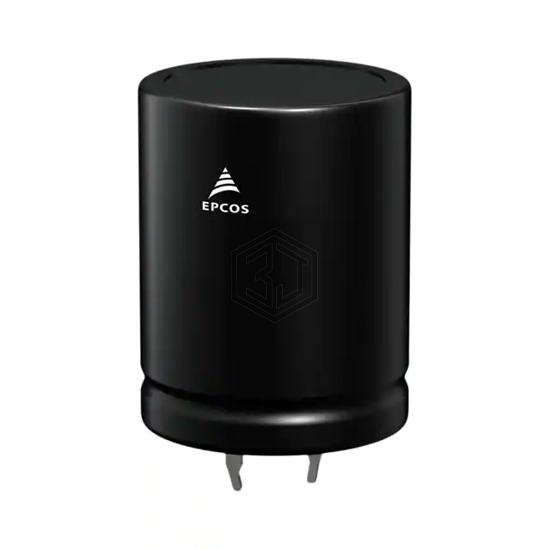

B43642A2397M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 390UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 5,186
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 200mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.21 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 280 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXF101ELL391ML30S | United Chemi-Con | CAP ALUM 390UF 20% 100V RAD TH | 67% | View |
| LHT2W391MELC40 | Nichicon | CAP ALUM 390UF 20% 450V SNAP TH | 60% | View |
| B43544F9397M067 | EPCOS - TDK Electronics | CAP ALUM 400V POLAR | 60% | View |
| B43544F9397M060 | EPCOS - TDK Electronics | CAP ALUM 400V POLAR | 60% | View |
| 672D397H040ET5G | Vishay Sprague | CAP ALUM 390UF 40V RADIAL | 56% | View |
| EKY-630ELL391MK20S | United Chemi-Con | CAP ALUM 390UF 20% 63V RADIAL | 52% | View |
Submit your RFQ for B43642A2397M000 and get a quote within 24 hours.
