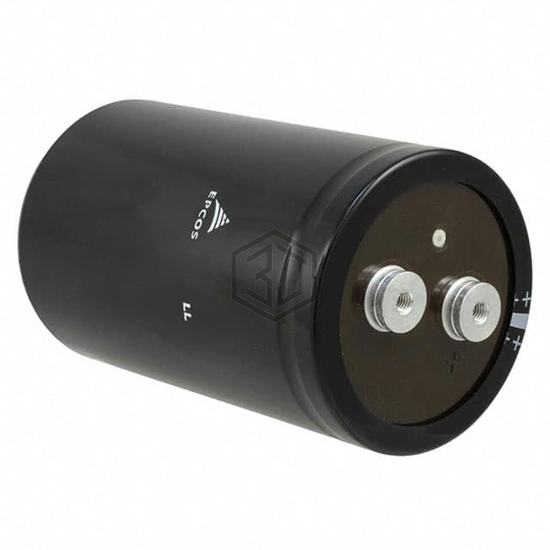

CAP ALUM 4700UF 20% 450V SCREW
B43584J5478M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 4700UF 20% 450V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,594
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 38mOhm @ 100Hz |
| Lifetime @ Temp. | - |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.583" Dia (91.00mm) |
| Height - Seated (Max) | 5.728" (145.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
B43584J5478M003 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D451CDS472QEN0U | Chemi-Con | CAP ALUM 4.7MF 450V SCREW | 100% | View |
| E36F451CGS452MEB7U | Chemi-Con | CAP ALUM 4.5MF 20% 450V SCREW | 97% | View |
| B43584B6478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 500V SCREW | 94% | View |
| B43584B6478M003 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 500V SCREW | 94% | View |
| B43584B4478M003 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 350V SCREW | 81% | View |
| B43584A2478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 250V SCREW | 62% | View |
Submit your RFQ for B43584J5478M003 and get a quote within 24 hours.
