CAP ALUM 4700UF 20% 450V SCREW

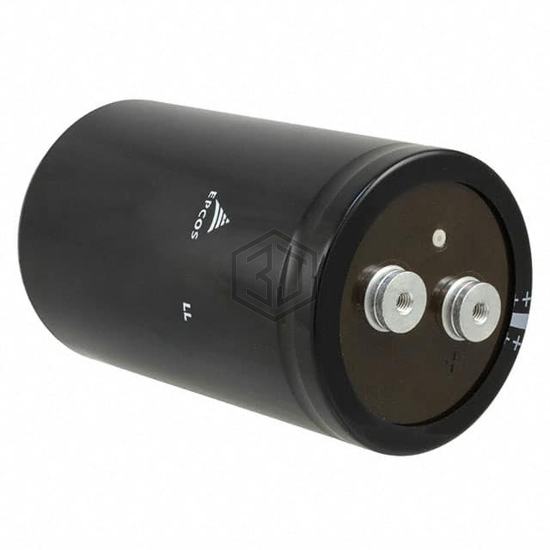

B43584J5478M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 4700UF 20% 450V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 19
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 38mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 38 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.583" Dia (91.00mm) |
| Height - Seated (Max) | 5.689" (144.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
