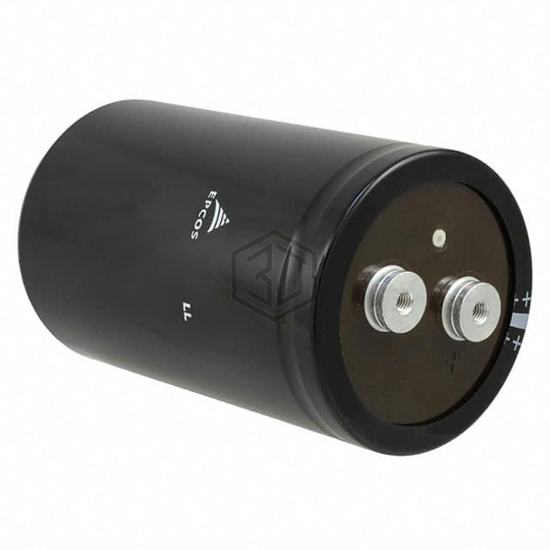

CAP ALUM 22000UF 20% 200V SCREW
B43584E2229M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 22000UF 20% 200V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -25°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,513
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | 5mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 35.9 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 6 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.583" Dia (91.00mm) |
| Height - Seated (Max) | 5.728" (145.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
B43584E2229M003 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43584E2229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 200V SCREW | 100% | View |
| B43584A2229M3 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 250V SCREW | 90% | View |
| B43584A2229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 250V SCREW | 90% | View |
| B43584A1229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 160V SCREW | 86% | View |
| B43584E2279M000 | EPCOS - TDK Electronics | CAP ALUM 27000UF 20% 200V SCREW | 83% | View |
| B43584A2279M | EPCOS - TDK Electronics | CAP ALUM 27000UF 20% 250V SCREW | 75% | View |
