CAP ALUM 8200UF 20% 400V SCREW

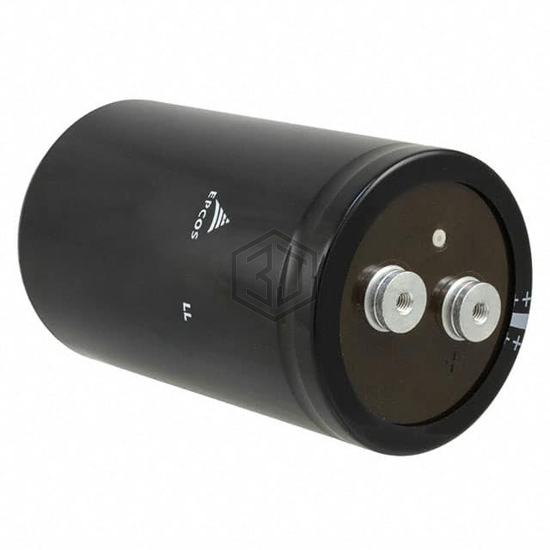

B43584A9828M is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 8200UF 20% 400V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,945
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 15mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19.8 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 18 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.583" Dia (91.00mm) |
| Height - Seated (Max) | 5.728" (145.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43584A9828M3 | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 400V SCREW | 100% | View |
| E37L401CPS822MFB7U | Chemi-Con | SCREW TERMINAL CAPCITOR | 97% | View |
| E37L351CPS822MEE3U | Chemi-Con | SCREW TERMINAL CAPCITOR | 92% | View |
| E36F451CSS822MEF5U | Chemi-Con | CAP ALUM 8.2MF 20% 450V SCREW | 92% | View |
| B43584A2828M | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 250V SCREW | 78% | View |
| B43584E2828M3 | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 200V SCREW | 68% | View |
Submit your RFQ for B43584A9828M and get a quote within 24 hours.
