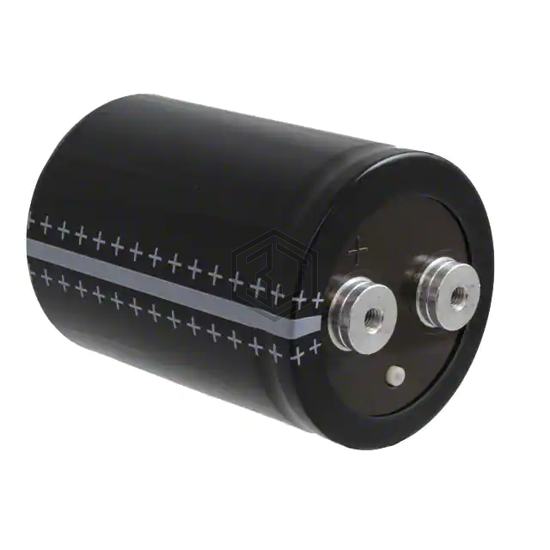

CAP ALUM 4700UF 20% 400V SCREW
B43584A9478M3 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 4700UF 20% 400V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,248
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 23mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13.8 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 28 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37F401CSS472MEA5U | Chemi-Con | CAP ALUM 4.7MF 20% 400V SCREW | 100% | View |
| E36L401CSS472MEA5U | Chemi-Con | CAP ALUM 4.7MF 20% 400V SCREW | 100% | View |
| E36F421CDS472MEA5U | Chemi-Con | CAP ALUM 4.7MF 20% 420V SCREW | 97% | View |
| E36L421CDS472MEA5U | Chemi-Con | CAP ALUM 4.7MF 20% 420V SCREW | 97% | View |
| E37L351CPS472MDD0U | Chemi-Con | SCREW TERMINAL CAPCITOR | 93% | View |
| E36F451CDS472MEA5U | Chemi-Con | CAP ALUM 4.7MF 20% 450V SCREW | 92% | View |
Submit your RFQ for B43584A9478M3 and get a quote within 24 hours.
