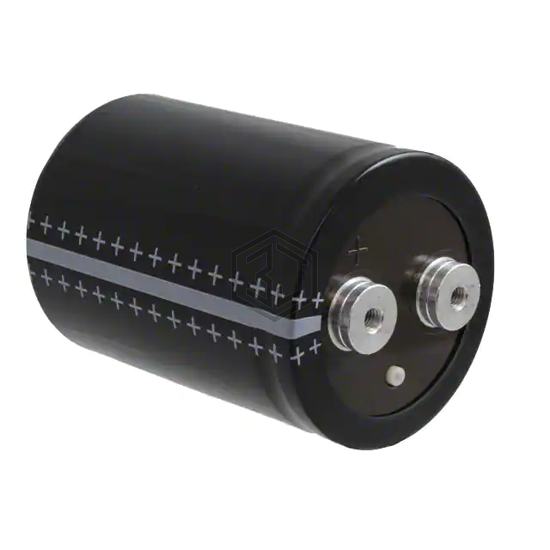

CAP ALUM 3900UF 20% 400V SCREW
B43584A9398M is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 3900UF 20% 400V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,435
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 29mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.8 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 35 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43584A9398M3 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 400V SCREW | 100% | View |
| E37L401CPS392ME92U | Chemi-Con | SCREW TERMINAL CAPCITOR | 98% | View |
| E37L401CPS392MDD0U | Chemi-Con | SCREW TERMINAL CAPCITOR | 97% | View |
| B43584A4398M | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 350V SCREW | 95% | View |
| E37L351CPS392MDA5U | Chemi-Con | SCREW TERMINAL CAPCITOR | 93% | View |
| B43584A6398M003 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 500V SCREW | 87% | View |
Submit your RFQ for B43584A9398M and get a quote within 24 hours.
