CAP ALUM 1500UF 20% 400V SCREW

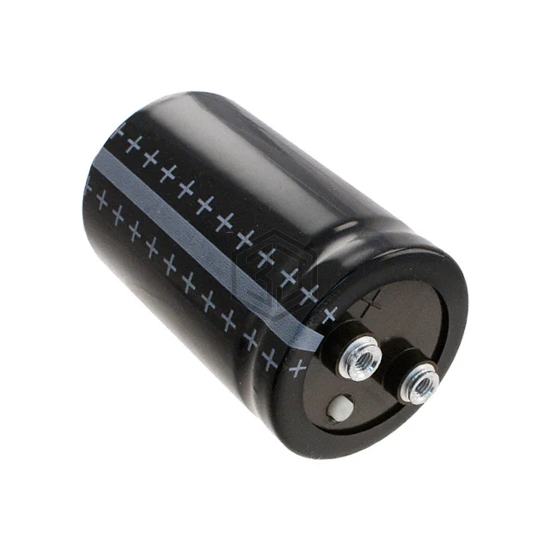

B43584A9158M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1500UF 20% 400V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,698
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 62mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.4 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 74 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.032" Dia (51.60mm) |
| Height - Seated (Max) | 3.177" (80.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
B43584A9158M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43457A9158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 400V SCREW | 100% | View |
| B43584A0158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 400V SCREW | 100% | View |
| B43584D5158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 450V SCREW | 94% | View |
| B43457D5158M | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 450V SCREW | 94% | View |
| B43584B6128M000 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 500V SCREW | 75% | View |
| B43457A0108M000 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 400V SCREW | 70% | View |
Submit your RFQ for B43584A9158M000 and get a quote within 24 hours.
