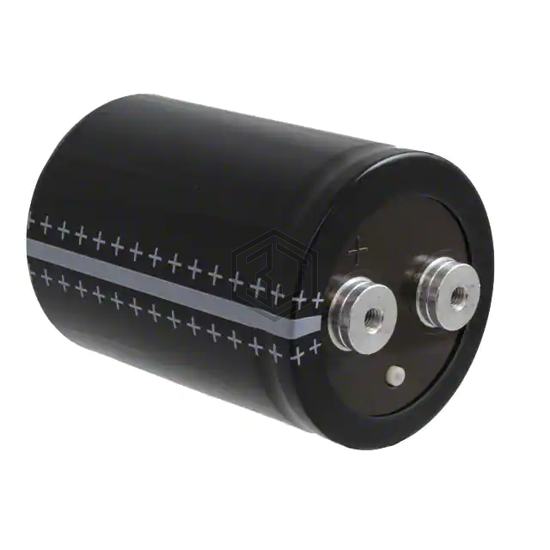

CAP ALUM 2700UF 20% 500V SCREW
B43584A6278M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 2700UF 20% 500V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -25°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,272
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 36mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.2 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 43 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43584A6278M000 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 500V SCREW | 100% | View |
| E36L501CGS272MEB7U | Chemi-Con | CAP ALUM 2.7MF 20% 500V SCREW | 100% | View |
| E36L451HLS272MEA5U | Chemi-Con | CAP ALUM 2.7MF 20% 450V SCREW | 95% | View |
| E37X451CPS272MDB7U | Chemi-Con | CAP ALUM 2.7MF 20% 450V SCREW | 93% | View |
| E32D451CDS272MDE3U | Chemi-Con | CAP ALUM 2.7MF 20% 450V SCREW | 93% | View |
| B43584A4278M3 | EPCOS - TDK Electronics | CAP ALUM 2700UF 20% 350V SCREW | 80% | View |
Submit your RFQ for B43584A6278M003 and get a quote within 24 hours.
