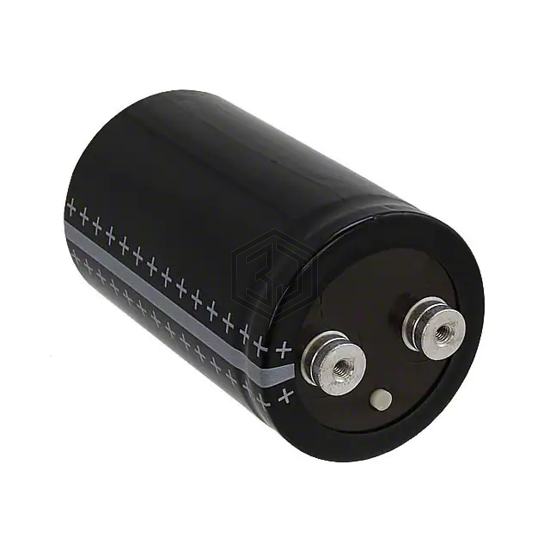

CAP ALUM 2200UF 20% 450V SCREW
B43584A5228M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 2200UF 20% 450V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,074
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 72mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.2 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 65 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.161" (105.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43584A5228M003 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 450V SCREW | 100% | View |
| B43727A5228M600 | EPCOS - TDK Electronics | SCREW TERMINALS 2200UF 450V | 95% | View |
| E36F401CDS222MDA5U | Chemi-Con | CAP ALUM 2.2MF 20% 400V SCREW | 93% | View |
| E36F501HLS222MEA5U | Chemi-Con | CAP ALUM 2.2MF 20% 500V SCREW | 93% | View |
| E36F401CPS222MD92U | Chemi-Con | CAP ALUM 2.2MF 20% 400V SCREW | 92% | View |
| E36L401HLS222ME79U | Chemi-Con | CAP ALUM 2.2MF 20% 400V SCREW | 92% | View |
