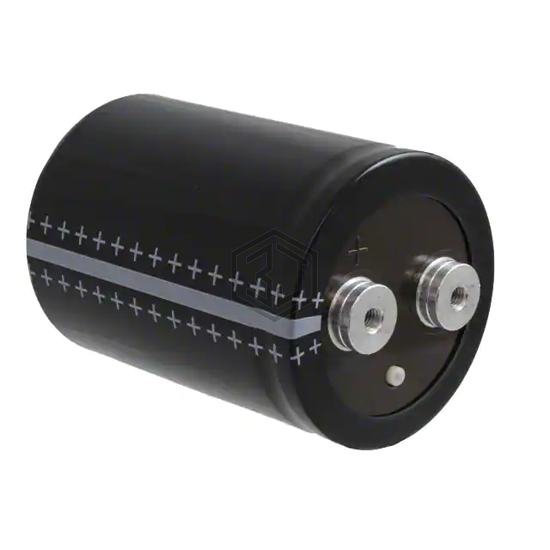

CAP ALUM 8200UF 20% 250V SCREW
B43584A2828M3 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 8200UF 20% 250V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -25°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,154
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 16mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 16.4 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 19 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43584A4828M003 | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 350V SCREW | 78% | View |
| E37L351CPS822MFA5U | Chemi-Con | SCREW TERMINAL CAPCITOR | 78% | View |
| E37L351CPS822MFB7U | Chemi-Con | SCREW TERMINAL CAPCITOR | 77% | View |
| B43457A5828M000 | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 450V SCREW | 73% | View |
| E37L401CPS822MFB7U | Chemi-Con | SCREW TERMINAL CAPCITOR | 71% | View |
| E36D421CDS852MEM9U | Chemi-Con | CAP ALUM 8.5MF 20% 420V SCREW | 64% | View |
Submit your RFQ for B43584A2828M3 and get a quote within 24 hours.
