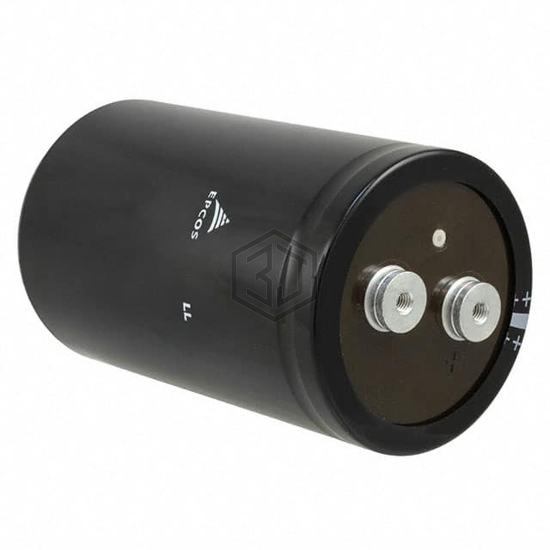

CAP ALUM 15000UF 20% 250V SCREW
B43584A2159M3 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 15000UF 20% 250V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -25°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,481
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | 7mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 29.2 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 8 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.583" Dia (91.00mm) |
| Height - Seated (Max) | 5.728" (145.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43584B2159M3 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 250V SCREW | 95% | View |
| B43457A4159M | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 350V SCREW | 86% | View |
| B43584E2159M003 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 200V SCREW | 85% | View |
| B43584A4159M3 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 350V SCREW | 83% | View |
| E37L351CPS153MFK0U | Chemi-Con | SCREW TERMINAL CAPCITOR | 80% | View |
| E36L301CSS183QEM9U | Chemi-Con | CAP ALUM 18MF 300V SCREW | 74% | View |
