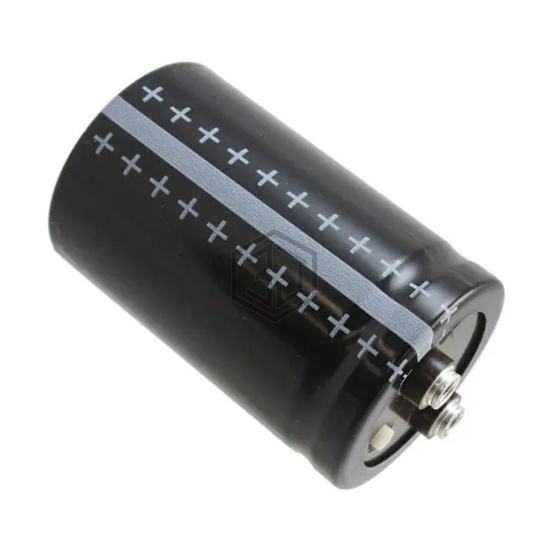

CAP ALUM 2200UF 20% 400V SCREW
B43564B9228M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 2200UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,833
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 72mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.9 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 58 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.532" Dia (64.30mm) |
| Height - Seated (Max) | 3.177" (80.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B43564B9228M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D401HPN222ECD0U | United Chemi-Con | CAP ALUM 2200UF 400V SCREW | 100% | View |
| 36DX222F350CC2A | Vishay Sprague | CAP ALUM 2200UF 350V SCREW | 91% | View |
| LNX2W222MSEG | Nichicon | CAP ALUM 2200UF 20% 450V SCREW | 89% | View |
| HES222G450X5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 450V SCREW | 87% | View |
| LNUN7222MSEGBB | Nichicon | CAP ALUM 2200UF 20% 525V SCREW | 84% | View |
| B43705A5228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 450V SCREW | 83% | View |
Submit your RFQ for B43564B9228M000 and get a quote within 24 hours.
