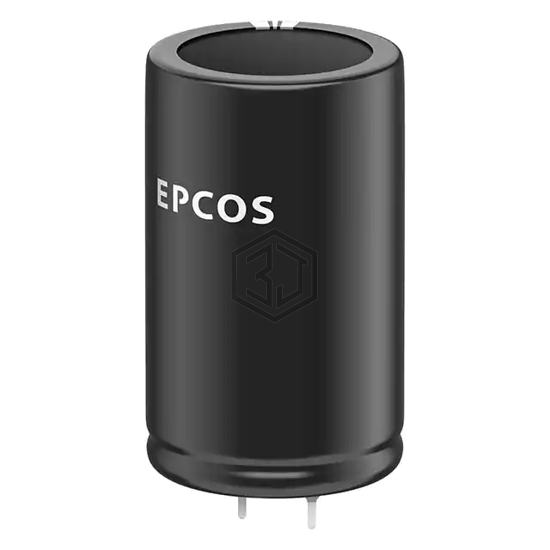

CAP ALUM 120UF 20% 400V SNAP
B43548A9127M060 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 120UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In.
In Stock: 2,144
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 730mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.17 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 1.07 Ohms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 420HXW120MEFR14.5X45 | Rubycon | CAP ALUM 120UF 20% 420V RADIAL | 89% | View |
| MAL215966121E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 120UF 20% 400V SNAP | 88% | View |
| 400LXW120MEFR18X25 | Rubycon | CAP ALUM 120UF 20% 400V RADIAL | 87% | View |
| UCP2W121MHD | Nichicon | CAP ALUM 120UF 20% 450V RADIAL | 84% | View |
| 381LQ121M420H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 420V SNAP | 81% | View |
| 381LX121M450J032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 450V SNAP | 78% | View |
Submit your RFQ for B43548A9127M060 and get a quote within 24 hours.
