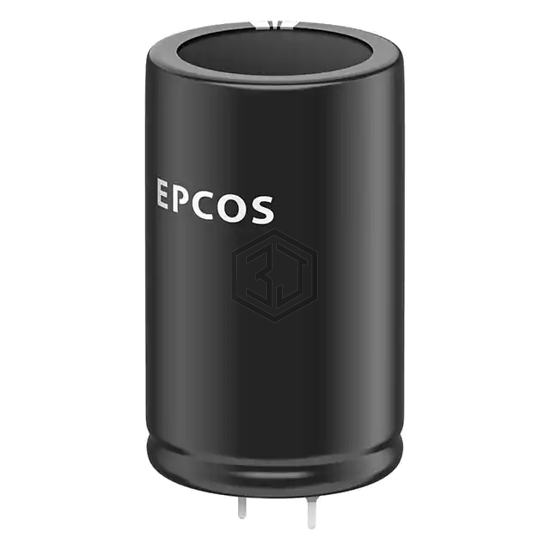

CAP ALUM 100UF 20% 500V SNAP
B43548A6107M060 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 100UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 500 V, package / case Radial, Can - Snap-In.
In Stock: 285
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 690mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.02 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 980 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 400HXW100MEFR14.5X35 | Rubycon | CAP ALUM 100UF 20% 400V RADIAL | 84% | View |
| 400HXW100MEFR12.5X40 | Rubycon | CAP ALUM 100UF 20% 400V RADIAL | 83% | View |
| EKXG401ELL101MMN3S | United Chemi-Con | CAP ALUM 100UF 20% 400V RADIAL | 81% | View |
| UCY2E101MHD1TN | Nichicon | CAP ALUM 100UF 20% 250V RADIAL | 60% | View |
| UCY2D101MHD1TO | Nichicon | CAP ALUM 100UF 20% 200V RADIAL | 59% | View |
| MAL214258101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 63V RADIAL | 56% | View |
