CAP ALUM 560UF 20% 400V SNAP

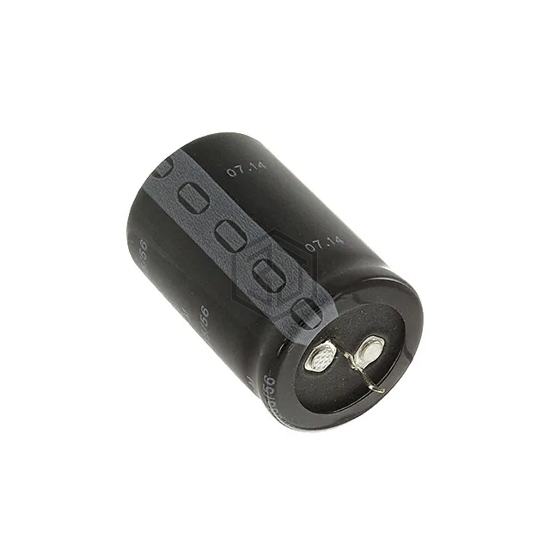

B43544E9567M002 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 560UF 20% 400V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can - Snap-In - 3 Lead.
In Stock: 8,077
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.28 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 180 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 2.244" (57.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 3 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43547A9567M062 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 93% | View |
| ALC80D561CB200 | KEMET | CAP ALUM 560UF 20% 200V SNAP | 59% | View |
| B43508E2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 59% | View |
| 672D567H020ET5C | Vishay Sprague | CAP ALUM 560UF 20V RADIAL | 56% | View |
| 630D567M025EF5A | Vishay Sprague | CAP ALUM 560UF 20% 25V AXIAL | 56% | View |
| 510DX567M063EN5D | Vishay Sprague | CAP ALUM 560UF 20% 63V RADIAL | 56% | View |
Submit your RFQ for B43544E9567M002 and get a quote within 24 hours.
