CAP ALUM 120UF 20% 450V SNAP

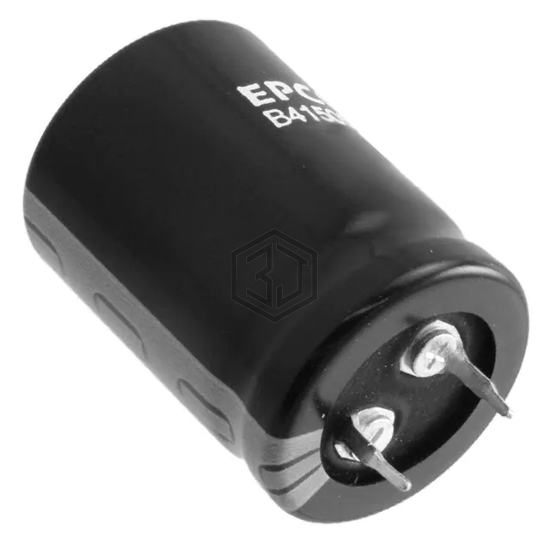

B43540A5127M7 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 120UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 5,920
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 810mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.16 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 1.15 Ohms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450HXW120MEFR14.5X45 | Rubycon | CAP ALUM 120UF 20% 450V RADIAL | 90% | View |
| B43305A5127M80 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 450V SNAP | 90% | View |
| B43504A9127M87 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 400V SNAP | 79% | View |
| B43508A9127M60 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 400V SNAP | 78% | View |
| UCY2E121MHD6TN | Nichicon | CAP ALUM 120UF 20% 250V RADIAL | 64% | View |
| UCY2D121MHD1TN | Nichicon | CAP ALUM 120UF 20% 200V RADIAL | 58% | View |
Submit your RFQ for B43540A5127M7 and get a quote within 24 hours.
