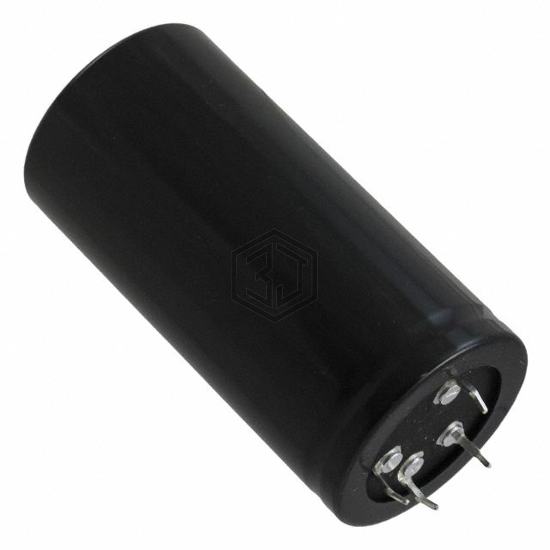

CAP ALUM 820UF 20% 500V SNAP
B43510A6827M007 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 820UF 20% 500V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 2,149
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 140mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.31 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 200 mOhms |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 4.016" (102.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43305A5827M87 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 450V SNAP | 92% | View |
| B43305B9827M60 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 400V SNAP | 87% | View |
| LGW2D821MELC25 | Nichicon | CAP ALUM 820UF 20% 200V SNAP | 70% | View |
| MAL209626821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 400V SNAP | 68% | View |
| B43305F2827M80 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 250V SNAP | 67% | View |
| B43504E2827M002 | EPCOS - TDK Electronics | CAP ALUM 820UF 20% 200V SNAP | 65% | View |
Submit your RFQ for B43510A6827M007 and get a quote within 24 hours.
