CAP ALUM 2200UF 20% 450V SNAP

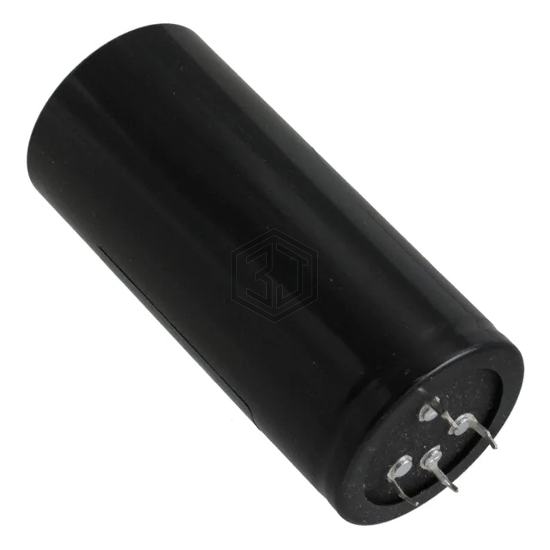

B43510A5228M007 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 2200UF 20% 450V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Snap-In - 4 Lead.
In Stock: 70
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 50mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.65 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 75 mOhms |
| Lead Spacing | 0.984" (25.00mm) |
| Size / Dimension | 1.772" Dia (45.00mm) |
| Height - Seated (Max) | 4.016" (102.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In - 4 Lead |
Submit your RFQ for B43510A5228M007 and get a quote within 24 hours.
