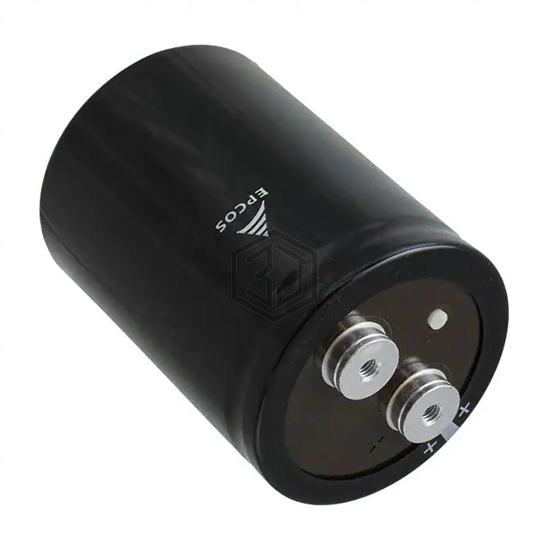

CAP ALUM 5600UF 20% 350V SCREW
B43458A4568M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 5600UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,827
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 14mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 15 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 17 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37X351CPN562MEB7M | United Chemi-Con | CAP ALUM 5600UF 20% 350V SCREW | 97% | View |
| E37L351CPN562MDE3M | United Chemi-Con | CAP ALUM 5600UF 20% 350V SCREW | 97% | View |
| 3186GG562M400MPC1 | Cornell Dubilier Electronics (CDE) | CAP ALUM 5600UF 20% 400V SCREW | 91% | View |
| B43464A5568M000 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 450V SCREW | 83% | View |
| ALS71G562NP500 | KEMET | CAP ALUM 5600UF 20% 500V SCREW | 72% | View |
| E36D500HPN562UCA5U | United Chemi-Con | CAP ALUM 5600UF 50V SCREW | 56% | View |
Submit your RFQ for B43458A4568M003 and get a quote within 24 hours.
