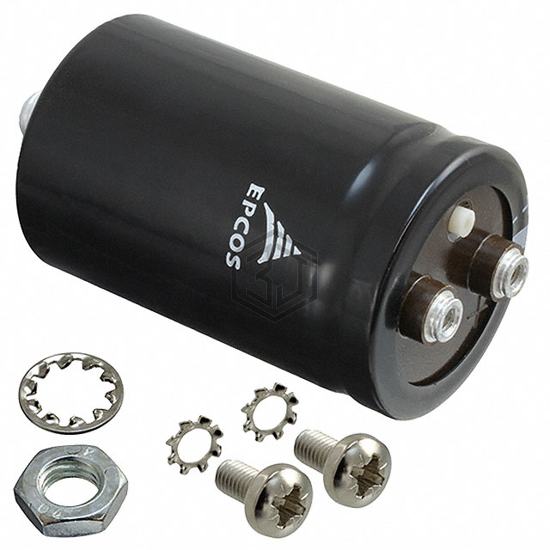

CAP ALUM 1500UF 20% 350V SCREW
B43458A4158M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1500UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 58
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | 47mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 50 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.032" Dia (51.60mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for B43458A4158M000 and get a quote within 24 hours.
