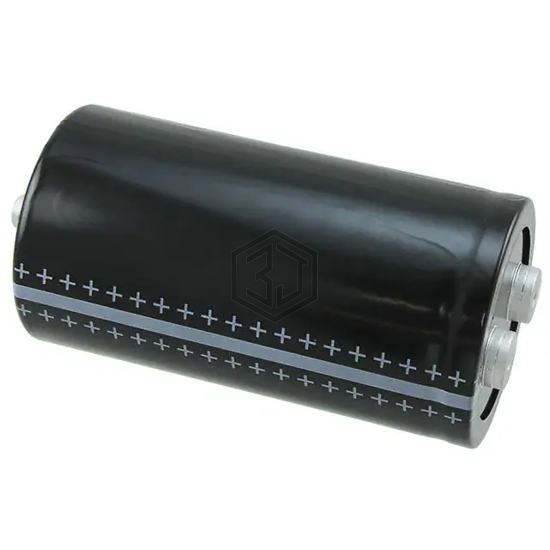

CAP ALUM 4700UF 20% 400V SCREW
B43457A0478M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 4700UF 20% 400V SCREW. Key specifications: mounting type Chassis, Stud Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,248
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 5.677" (144.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis, Stud Mount |
| Package / Case | Radial, Can - Screw Terminals |
B43457A0478M003 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43457A9478M3 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 400V SCREW | 100% | View |
| E37L401CPS472MDE3U | Chemi-Con | SCREW TERMINAL CAPCITOR | 100% | View |
| E37L451CPS472MEB7U | Chemi-Con | SCREW TERMINAL CAPCITOR | 92% | View |
| E37L451CPS472MF92U | Chemi-Con | SCREW TERMINAL CAPCITOR | 92% | View |
| E36L451HLS472MEE3U | Chemi-Con | CAP ALUM 4.7MF 20% 450V SCREW | 92% | View |
| B43457C4478M | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 350V SCREW | 91% | View |
