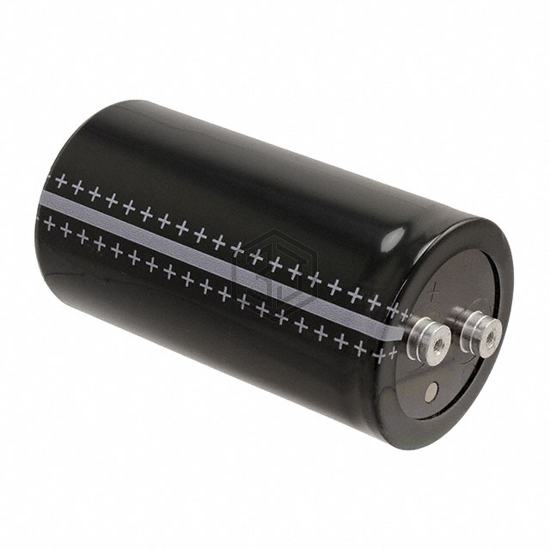

CAP ALUM 3900UF 20% 450V SCREW
B43454A5398M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 3900UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,086
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 51mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 41 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 5.677" (144.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DCMC392M500DF2FS | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 500V SCREW | 93% | View |
| LNY2W392MSEGBB | Nichicon | CAP ALUM 3900UF 20% 450V SCREW | 93% | View |
| E37X401CPN392ME92U | United Chemi-Con | CAP ALUM 3900UF 20% 400V SCREW | 93% | View |
| ALS81C392NF500 | KEMET | CAP ALUM 3900UF 20% 500V SCREW | 92% | View |
| LNC2W392MTEG | Nichicon | CAP ALUM 3900UF 20% 450V SCREW | 85% | View |
| LNY2V392MSEFBB | Nichicon | CAP ALUM 3900UF 20% 350V SCREW | 80% | View |
Submit your RFQ for B43454A5398M000 and get a quote within 24 hours.
