CAP ALUM 5600UF 20% 450V SCREW

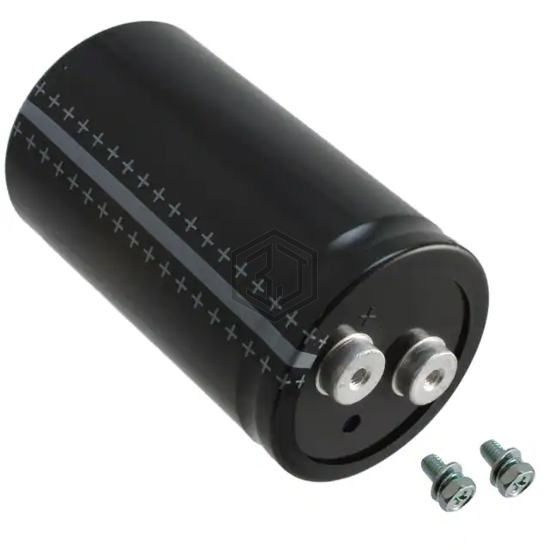

B43310A5568M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 5600UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,616
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 34mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13.3 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 6.102" (155.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS80A562NP450 | KEMET | CAP ALUM 5600UF 20% 450V SCREW | 97% | View |
| E36D401LPN562TEE3U | United Chemi-Con | CAP ALUM 5600UF 400V SCREW | 92% | View |
| MAL250179562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 500V SCREW | 89% | View |
| B43705A5568M050 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 450V SCREW | 82% | View |
| ELXR451LGC562MFF5U | United Chemi-Con | CAP ALUM 5600UF 20% 450V SCREW | 81% | View |
| LNC2V562MTEG | Nichicon | CAP ALUM 5600UF 20% 350V SCREW | 80% | View |
