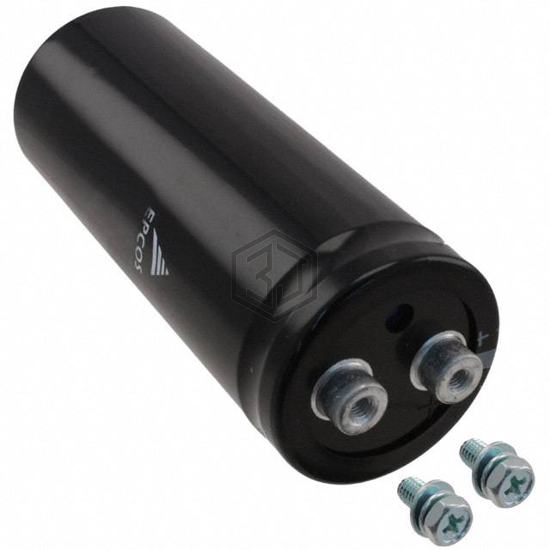

CAP ALUM 1800UF 20% 450V SCREW
B43310A5188M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1800UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,283
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 102mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.032" Dia (51.60mm) |
| Height - Seated (Max) | 5.118" (130.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B43310A5188M000 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 520C182M500CC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 1800UF 20% 500V SCREW | 93% | View |
| B43733A9188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 400V SCREW | 89% | View |
| LNX2L182MSEHBN | Nichicon | CAP ALUM 1800UF 20% 550V SCREW | 88% | View |
| ERHA501LGC182MCD0U | United Chemi-Con | CAP ALUM 1800UF 20% 500V SCREW | 85% | View |
| ERHA601LGC182ME95U | United Chemi-Con | CAP ALUM 1800UF 20% 600V SCREW | 75% | View |
| LNY2V182MSEFBN | Nichicon | CAP ALUM 1800UF 20% 350V SCREW | 73% | View |
Submit your RFQ for B43310A5188M000 and get a quote within 24 hours.
