CAP ALUM 150UF 20% 63V RADIAL

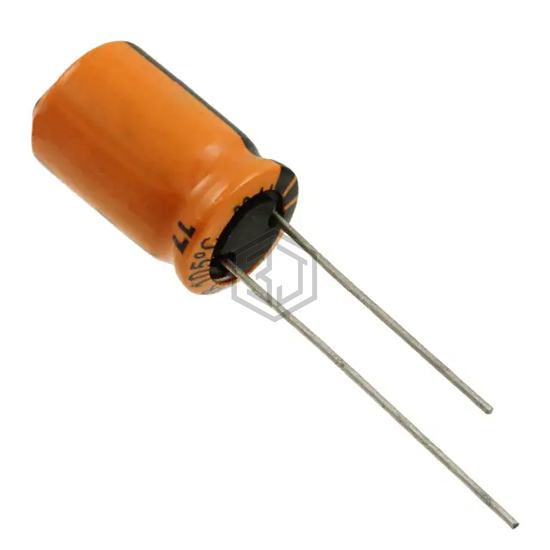

B41888C8157M is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 150UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 3,564
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 308mOhm @ 10kHz |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 474 mA @ 100 kHz |
| Impedance | 279 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211918151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 63V AXIAL | 94% | View |
| EEU-FC1J151 | Panasonic Electronic Components | CAP ALUM 150UF 20% 63V RADIAL | 83% | View |
| RXK151M1JBK-1025S | Surge | CAP ALUM 63V POLAR | 74% | View |
| MAL213651151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 50V RADIAL | 64% | View |
| EEU-FC1V151B | Panasonic Electronic Components | CAP ALUM 150UF 20% 35V RADIAL | 62% | View |
| MAL213639151E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150UF 20% 100V RADIAL | 57% | View |
