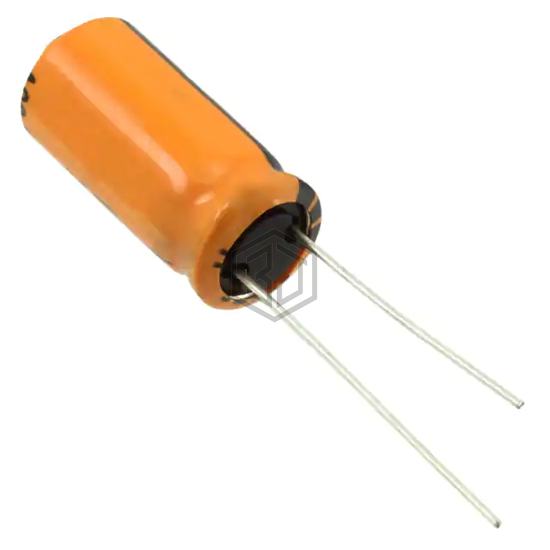

CAP ALUM 1200UF 20% 16V RADIAL
B41888C4128M is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 2,626
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 50mOhm @ 10kHz |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | 46 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK122M1CBK-1320S | Surge | CAP ALUM 16V POLAR | 97% | View |
| LXY10VB122M10X25LL | United Chemi-Con | CAP ALUM 1200UF 20% 10V RADIAL | 77% | View |
| EEU-FC1E122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 25V RADIAL | 71% | View |
| EEU-FC0J122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 6.3V RADIAL | 61% | View |
| MAL215061122E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1200UF 20% 50V RADIAL | 55% | View |
| UPA1V122MHD1TO | Nichicon | CAP ALUM 1200UF 20% 35V RADIAL | 53% | View |
Submit your RFQ for B41888C4128M and get a quote within 24 hours.
