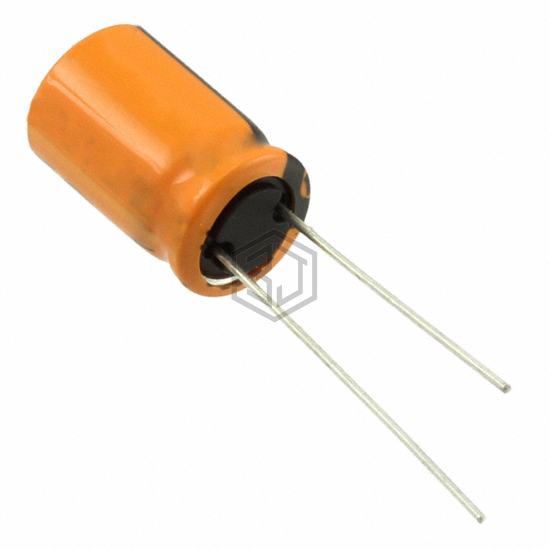

CAP ALUM 220UF 20% 25V RADIAL
B41868W5227M is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 220UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, voltage - rated 25 V, package / case Radial, Can, size / dimension 0.394" Dia (10.00mm).
In Stock: 8,190
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 228mOhm @ 10kHz |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 426 mA @ 100 kHz |
| Impedance | 208 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
B41868W5227M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TBE1E221MCD1LZ | Nichicon | CAP ALUM 220UF 20% 25V AXIAL | 100% | View |
| 35YXJ220MCA8X11.5 | Rubycon | CAP ALUM 220UF 20% 35V RADIAL | 73% | View |
| EST227M035AG4AA | KEMET | CAP ALUM 220UF 20% 35V RADIAL | 64% | View |
| MAL214858221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 63% | View |
| EEU-FS0J221B | Panasonic Electronic Components | CAP ALUM 220UF 20% 6.3V RADIAL | 59% | View |
| EKMG101ELL221MK25S | United Chemi-Con | CAP ALUM 220UF 20% 100V RADIAL | 57% | View |
