CAP ALUM 33UF 20% 100V RADIAL

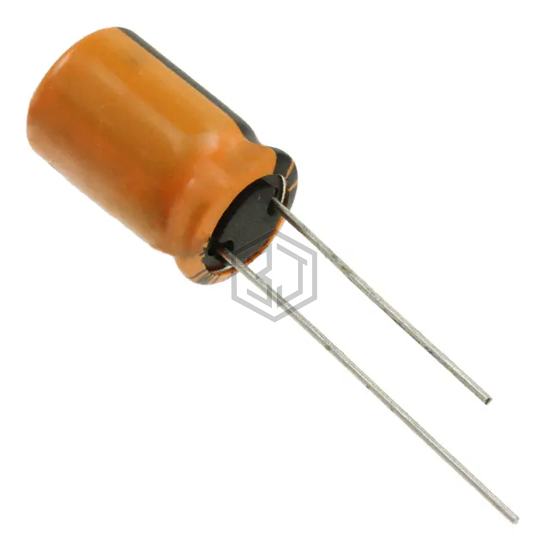

B41858C9336M8 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 33UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 654mOhm @ 10kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 357 mA @ 100 kHz |
| Impedance | 589 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ101ELL330MHB5D | United Chemi-Con | CAP ALUM 33UF 20% 100V RADIAL | 86% | View |
| UPJ1J330MED1TD | Nichicon | CAP ALUM 33UF 20% 63V RADIAL | 78% | View |
| 860080773006 | Würth Elektronik | CAP ALUM 33UF 20% 63V RADIAL | 70% | View |
| UPS1H330MED1TA | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 64% | View |
| KMG63VB33RM6X11LL | United Chemi-Con | CAP ALUM 33UF 20% 63V RADIAL | 59% | View |
| 860080572001 | Würth Elektronik | CAP ALUM 33UF 20% 35V RADIAL | 55% | View |
Submit your RFQ for B41858C9336M8 and get a quote within 24 hours.
