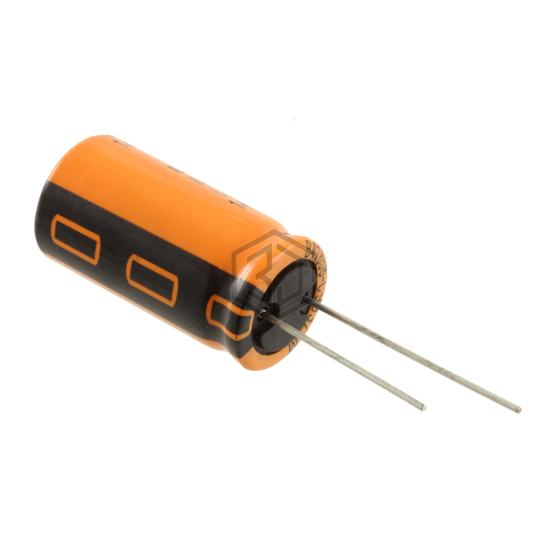

CAP ALUM 820UF 20% 63V RADIAL
B41858C8827M9 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 820UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 8,217
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 54mOhm @ 10kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.092 A @ 100 kHz |
| Impedance | 49 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
B41858C8827M9 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1J821MHD6 | Nichicon | CAP ALUM 820UF 20% 63V RADIAL | 93% | View |
| ELXZ630ELL821MM25S | United Chemi-Con | CAP ALUM 820UF 20% 63V RADIAL | 92% | View |
| MAL224668821E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 63V RADIAL | 87% | View |
| EEU-FC1H821L | Panasonic Electronic Components | CAP ALUM 820UF 20% 50V RADIAL | 84% | View |
| 672D827F040FV3C | Vishay Sprague | CAP ALUM 820UF 40V RADIAL | 71% | View |
| EEU-FK1E821S | Panasonic Electronic Components | CAP ALUM 820UF 20% 25V RADIAL TH | 65% | View |
Submit your RFQ for B41858C8827M9 and get a quote within 24 hours.
