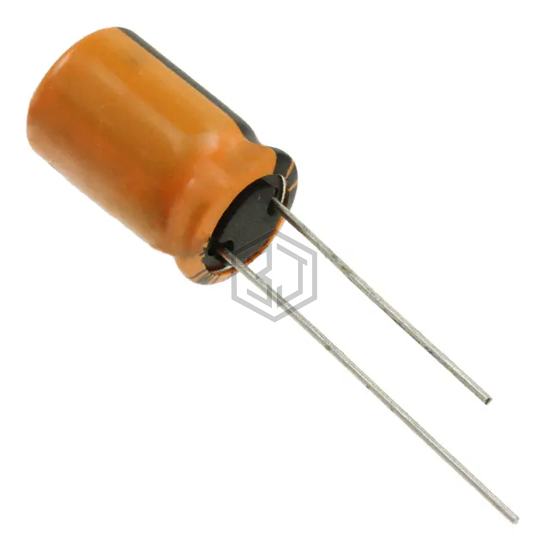

CAP ALUM 560UF 20% 25V RADIAL
B41858C5567M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 560UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,963
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 118mOhm @ 10kHz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Automotive |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 846 mA @ 100 kHz |
| Impedance | 105 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C4567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 16V RADIAL | 85% | View |
| UPW1E561MPD1AA | Nichicon | CAP ALUM 25V POLAR | 79% | View |
| ELXV250ELL561MJ25S | United Chemi-Con | CAP ALUM 560UF 20% 25V RADIAL | 78% | View |
| 860080274012 | Würth Elektronik | CAP ALUM 560UF 20% 10V RADIAL | 70% | View |
| EEU-HD1H561S | Panasonic Electronic Components | CAP ALUM 560UF 20% 50V RADIAL | 67% | View |
| EEU-FC0J561B | Panasonic Electronic Components | CAP ALUM 560UF 20% 6.3V RADIAL | 63% | View |
